The all-new Viper V1300X gives you all the options and accessories you need to complete even the toughest tasks. With outstanding build quality and parts sourced from industry-leading manufacturers, the V1300X is built to excel at anything you can throw its way. The V1300X has a narrow footprint, powerful engine and impressive operating capacity, allowing you to tackle a large variety of jobs with ease.
Our self-leveling boom provides ease of use as well as added safety in your every day workload.
With two sets of quick couplers, you have your choice between running attachments with either cylinder drives or hydraulic flow returns. Truly a a do-it-all mini track loader!
Our 8 inch wide rubber tracks provide the perfect drive system for close quarter, tight area work as they cause minimal ground disturbance on all terrains.

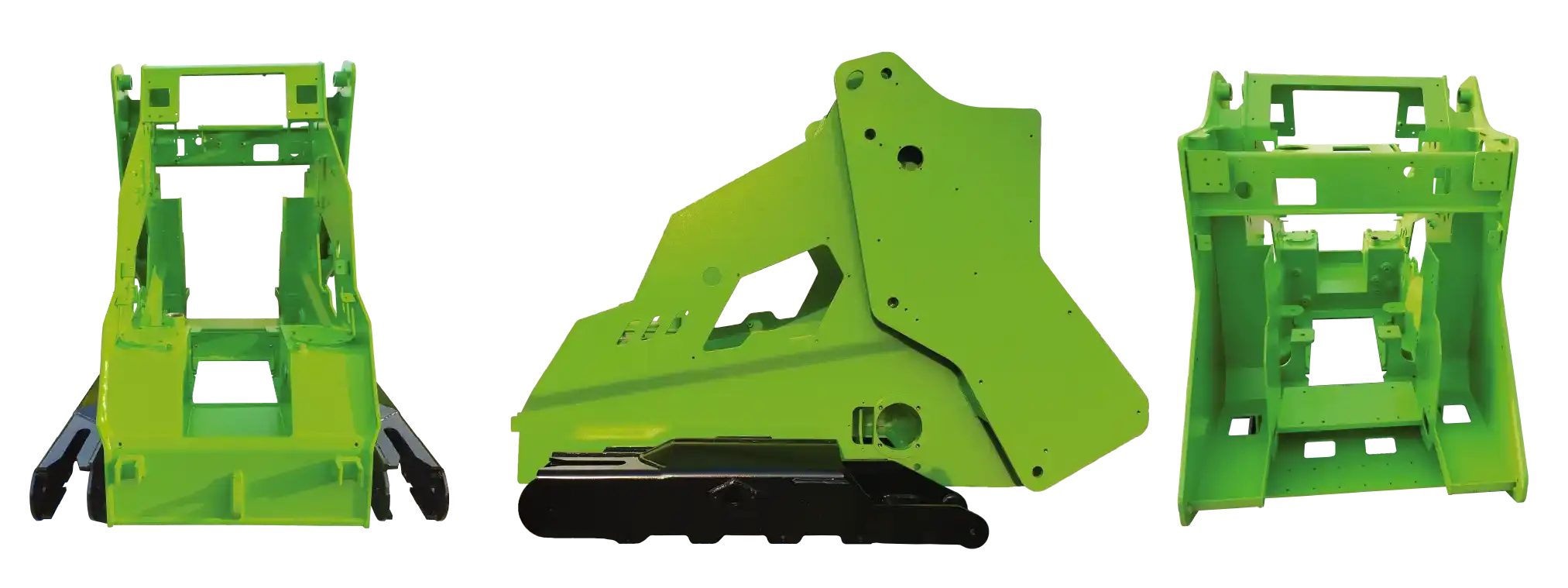

Viper Loaders are built to last from the ground up, using up to 1/2″ high-grade steel for frame construction.

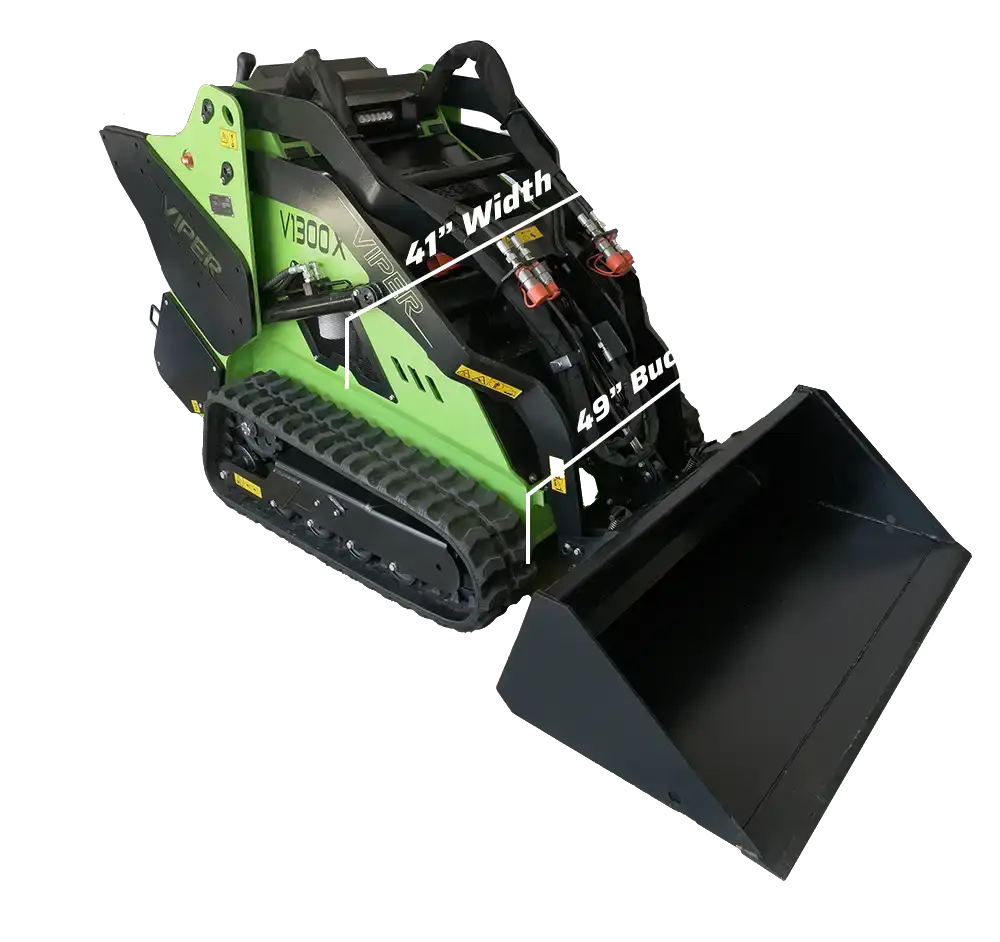

Viper Loaders get in all the tight places with a narrow 41″ width, but carry bigger loads with a standard 49″ bucket.

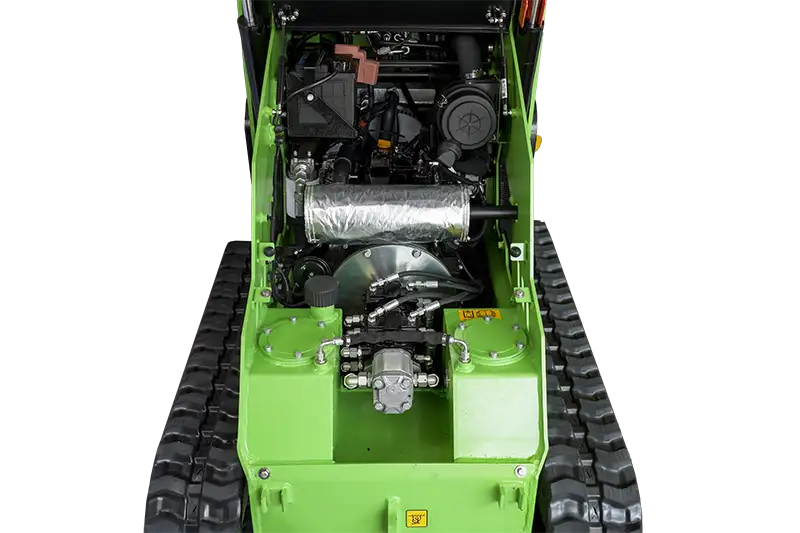

Our unique chassis design provides uninhibited access to all engine and hydraulic service areas, making maintenance and repairs quick and easy.

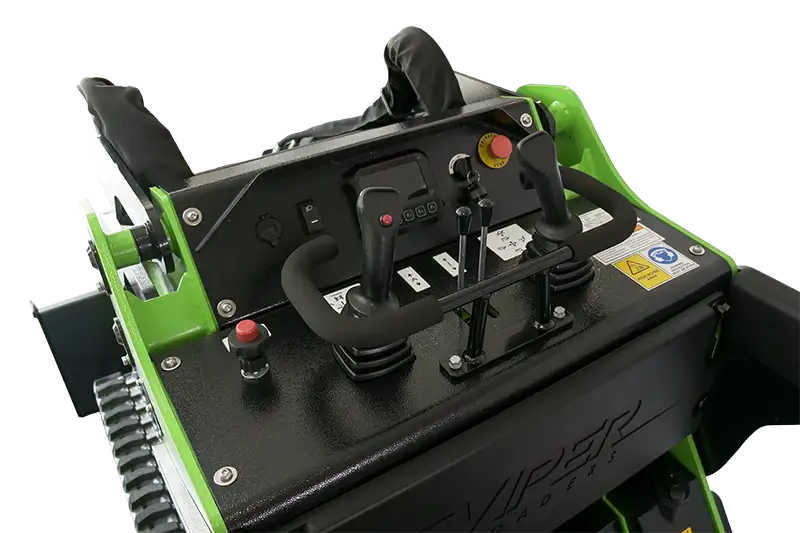

The Viper V1300X handling and maneuverability is made effortless with our ergonomic and intuitive joystick controls. Whether you’re a seasoned operator or using for the first time-Viper Loaders are designed for ease-of-use and smooth & safe operation.

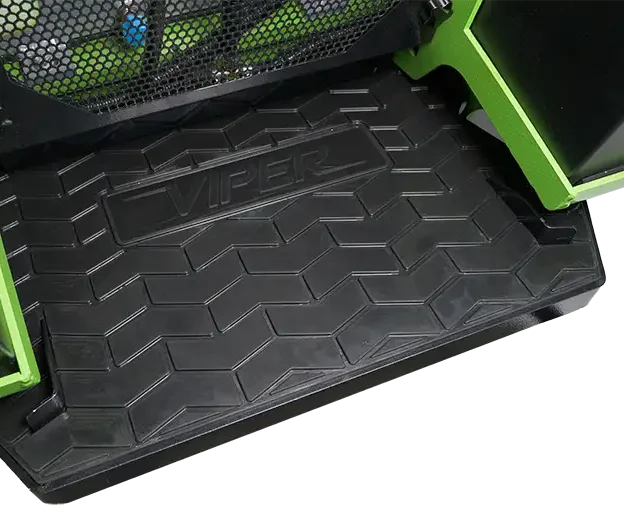

Tackling a full day of projects is made possible by our rubber bushing-mounted operator platform. The suspension-equipped pad helps lessen physical fatigue for more enjoyable operation. We’ve also added thick front and side bumpers that add to your safety and comfort during operation.
Viper Loaders is committed to building equipment with the absolute best parts in the industry. As part of our excellent customer service, working with trusted partners allows us to expedite parts to our customers, minimizing downtime and loss of revenue.
Sporting the Yanmar 3TNV80F diesel engine, output is an impressive 24HP/17.8kW. With low fuel consumption and clean emissions, you operate long days with lower fuel costs. With a Rated Operating Capacity (ROC) of 1,300lbs, you’re able to put all that power to good use. Lift heavy loads with ease thanks to hydraulic components from Bondioli & Pavesi, CAT and Danfoss.
Using a Viper Loader is made easy with smooth, intuitive joystick inputs provided by Walvoil. All critical systems information is displayed through a brightly-lit LED display, with multifunction preset capability. All manual controls are placed exactly where you need them, keeping the learning curve to a minimum for new and seasoned operators.
Make quick work of all your projects, thanks to Viper’s mini skid steer universal attachment mounting plate. Viper offers a variety of attachments including a 49″ standard bucket, tooth bucket, forks, grapple, tree boom lift, plus more.
| Rated Operating Capacity (ROCi) | 1300 lbs |
| Max. Travel Speed | 3.5 mph (with high torque drive motors) |
| Machine Weight with Bucket | 3323 lbs |
| Make/Model | Yanmar 3TNV80F diesel engine |
| Fuel/Cooling | Diesel/Liquid |
| Horsepower (SAE Gross J1955) | 17.8 kW / 24 HP or 18.4 kW / 24.7 HP |
| Rated engine speed | 3000 RPM |
| Torque | 52.4 ft-lb @1900 RPM (SAE Net) |
| Number of Cylinders | 3 |
| Displacement | 1.266 L (77.2 in³) |
| Bore/Stroke | 80 mm (3.15 in) / 84 mm (3.3 in) |
| Fuel Consumption | 1.55 gph |
| Lubrication | Forced lubrication with trochoid pump |
| Air Cleaner | Dry replaceable cartridge with safety element |
| Pump Type | Drive pump Type: Two closed circuit axial piston pumps. Auxiliary Pump Type: Gear pump |
| Main Control Valve | 2-Spool, open center series parallel configuration |
| Auxiliary Control Valve | 2-Spool, open center series parallel configuration |
| Auxiliary Flow | 11.5 GPM |
| Hydraulic Filter | Replaceable 10-micron filtration |
| Hose Quick Couplers | 2 Sets of Quick Couplers: Set 1 -2 quick couplers to drive a momentary attachment with cylinder(s). Set 2 – 3 quick couplers to drive constant hydraulic flow attachments, with or without case drain or hydraulic return. |
| System Relief | Auxiliary pump relief: 2900 psi (200 bar) Ground drive pump relief: 3045 psi (210 bar) |
| Main Drive | Right Hydraulic Motor drives right side track Left Hydraulic Motor drives left side track |
| Transmission | Direct drive of hydraulic motor to main undercarriage drive sprocket |
| Tracks | 8” inch wide |
| Cooling System | 1.3 gal |
| Engine Oil with Filter | 0.8 gal |
| Fuel Tank | 9 gal |
| Hydraulic Reservoir | 11 gal |
| Hydraulic System | 11.9 gal |
| Angle of Departure | 28° |
| Carry Position | 7.5 in |
| Dump Angle @Maximum Height | 52° |
| Dump Height with Standard Bucket | 48 in |
| Dump Reach @Maximum Height | 19.4 in |
| Ground Clearance | 6.5 in |
| Ground Clearance (Under Platform) | 11.5 in |
| Height to Bucket Hinge Pin | 76.3 in |
| Height | 54.9 in |
| Length without Attachment | 75.7 in |
| Length with Standard Bucket | 101.7 in |
| Operating Height | 89.4 in |
| Rollback @Carry Position | 40° |
| Rollback Fully Raised at Maximum Height | 40° |
| Ground Contact Length | 41.5 in |
| Turning Radius with Standard 49″ Bucket | 64 in |
| Machine Width | 40.9 in |
| Wheel Tread (over tracks) | 32 in |
| Width with Standard 49″ Bucket | 49.2 in |
